D Type Solenoid Driven Electromagnetic Diaphragm Dosing Metering Pump Manufacturer

D Type Electromagnetic Solenoid Dosing Pump

In the past 20 years, the solenoid driven diaphragm metering pumps are the most popular and typical of NEWDOSE products, offer a wide selection of flow rate and pressure, 1~55Lph, 0.1~20Bar. This kind of electromagnetic diphragm dosing pump works powerfully, with high dosing accuracy, and stable. It's convenient to operate and adjust the capacity according to the LED display and simplified buttons. Reasonable and flexible internal design makes customization realizable. We can provide solutions for you according to user demand and special working conditions to avoid the embarrassing modification of process design upon the unsuitability of the product.

Advantages and Features：

Stroke length adjustment
High efficiency delivery
Excellent compact structure
Optimized pump head structure
Ultra-low maintenance cost
Idling to be allowed
Simplify operation
Convenient to manage stocking

D Type Solenoid Dosing Pump List

DFD Type Solenoid Dosing Pump
Manual Operation
DP Type Solenoid Dosing Pump
Pulse Signal
DM Type Solenoid Dosing Pump
4-20mA
DC Type Solenoid Dosing Pump
RS485

D Type Electromagnetic Solenoid Dosing Pump Overview

D Type Electromagnetic Solenoid Dosing Pump Flow Rate

Flow rate: 0-55Lph
Maximum Pressure: 0-20Bar
Material of Pump Head: PP (anti-corrosion)
Optional Material: PVC, PTFE, SS316
Electrical Wiring of Solenoid Pump

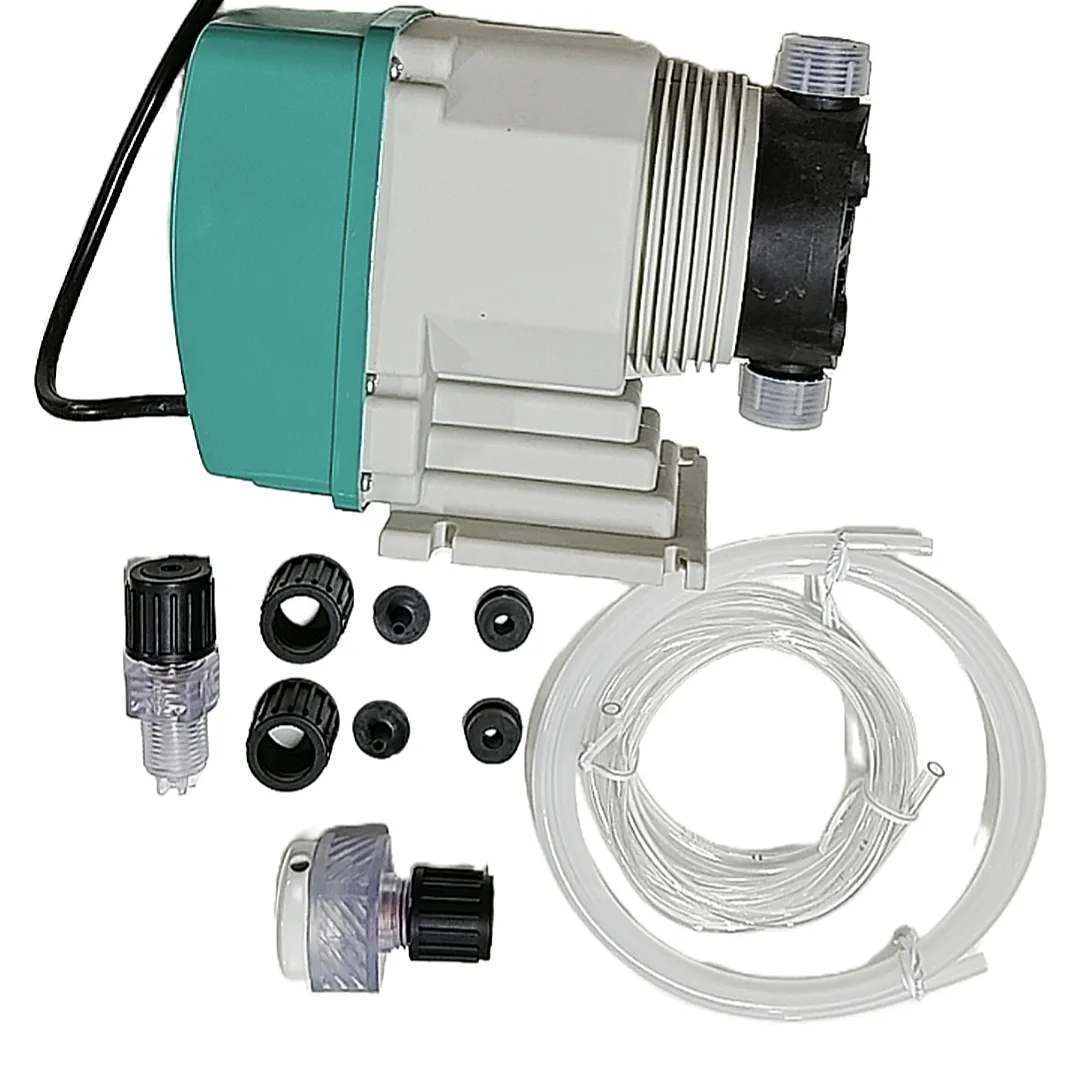

D Type Electromagnetic Solenoid Dosing Pump Package Contents

Installation Kits:

Suction and delivery pipes
Three-piece connectors
Dosing pump check valve
Filter
Sprayer

DOSING PUMPS

Online Consultation

Tell Us Your Needs for Dosing Pumps，NEWDOSE team Get Back to You ASAP!

Block A-903, CATIC Plaza, No.15 Ronghua South Road, Daxing District, Beijing, China. (100176)
86-15911042500
ark-company@newdose.net

FAQs About Solenoid Driven Diaphragm Metering Pumps

What's the max capacity of the small solenoid metering pump?

The max flow rate is 55Lph when the pressure is very low, lower than 0.1Bar.
What's the main usage of the sprayer?

The sprayer is used to connect the outlet pipe and the injection point, but only for the solenoid driven dosing pump. It can make the liquid be sprayed like mist and injected well-distributed. It should not be used as an isolating device or as a protection against siphonage.
How to change the diaphragm of solenoid dosing pump?
- Remove the screws on the back of the pump which fixes the pump head.
- Take down the pump head, and unscrew the diaphragm with a little strength.
- Once the diaphragm is taken down, check if there any wear or damages on its surface.
- Then change a new diaphragm to replace, and screw the pump head back to the pump, make sure the check valves is perpendicular to the ground.
Can the solenoid pump be dry running?

Newdose solenoid pump can be dry running less than 12 hours. Even though we suggest the customer install the warning equipment such as a level switch. Or the long-time dry running will ruin the pumps.
