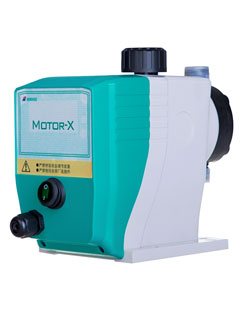

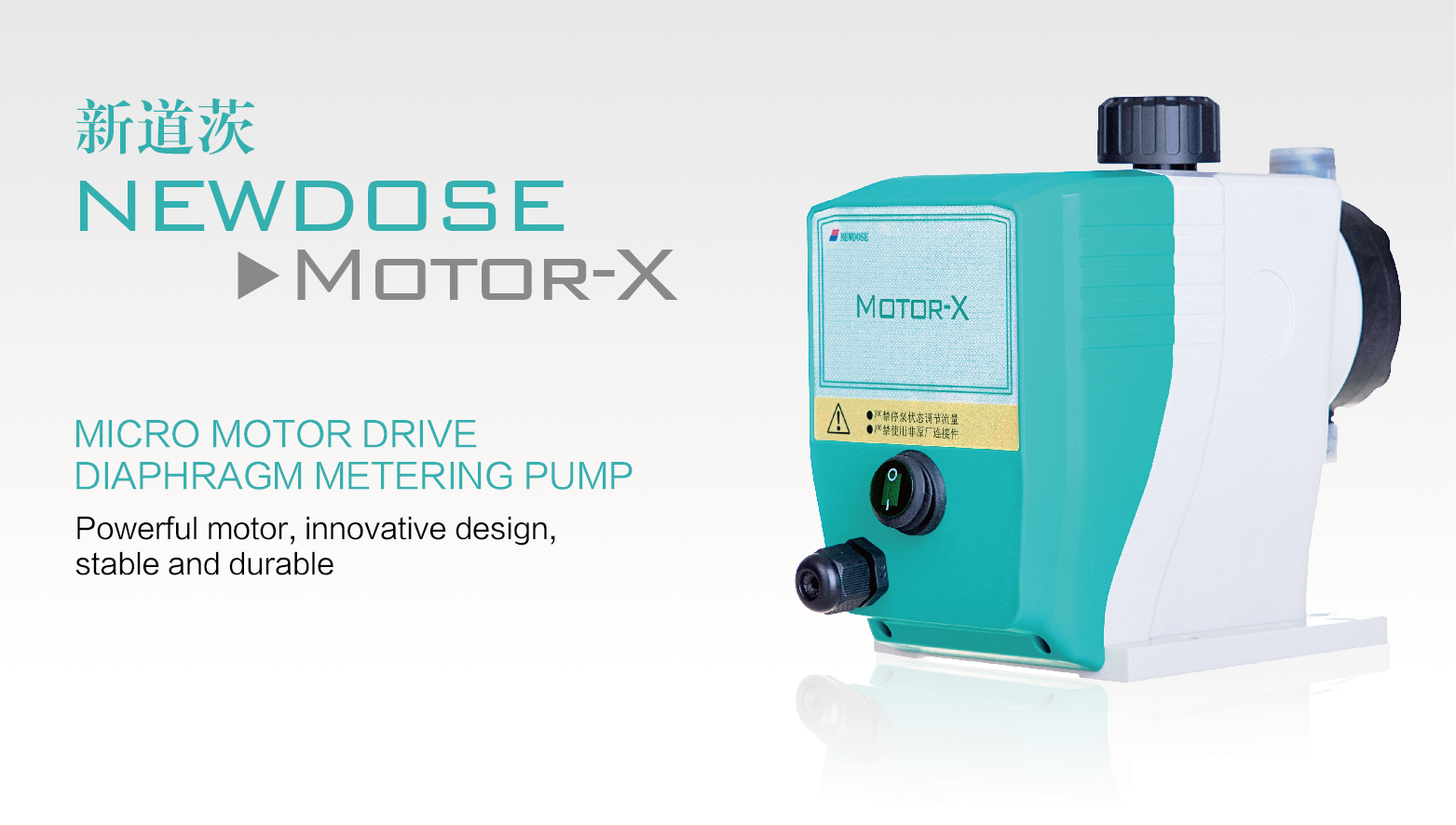

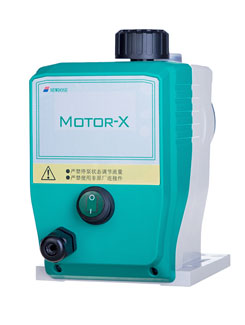

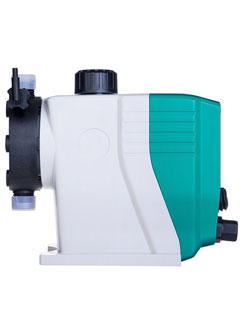

Features of Motor X Micro-mechanical Motor Dosing Pump
Full PTFE material diaphragm
Integrated pump head with check valves
2% metering accuracy
Various operation position
Lower noise
Higher protection class IP65
Capacity adjust by stroke length 10~100%
Power supply: 220V 50Hz 1phase
Model Capacity Pressure Stroke Length Diaphragm Diameter Speed Motor L/h Bar mm mm spm W MX30 01-07 1 7 1 35 115 28 02-07 2 7 2 35 80 28 03-07 3 7 2 35 115 28 05-05 5 5 2.5 35 115 28 08-03 8 3 3 35 115 28 MX40 09-07 9 7 2 47 115 41 12-06 12 6 3 47 80 41 15-04 15 4 3 47 115 41 18-02 18 2 4 47 115 41
